| GPS
Accessories |
| 1. RFID Reader |
|
Special Features:
|
|
- RFID card is read by the RFID reader and AVL CGS VZ will send this
card number to the server. This will send the data in a particular GPRS interval
until the next RFID card is ready to read.
|
|
Specification: |
| Working
Freequency |
125
Hz |
| Communication Format |
1200BPS, 8, N, 1 |
| Reading Distance |
> 80mm |
| Reading Time |
< 100ms |
|
|
|
|
2. Camera |
|
Special Features: |
 |
- When, the SOS button is pressed, AVL CGS VZ will capture an
image and save it in Flash Memory. If the GSM signal is good, it
will send this picture in JPG format to the server.
|
|
Specification: |
| Temperature Range |
-20°C to -80°C |
| Pixel |
30w pixel |
| Resolution |
160 x 120,
320 x 240, 640 x 480 |
| Ouput Format |
JPG |
| Voltage |
+5V |
| Baud Rate |
115200 |
| Power |
< 90mA |
| Minimum Illumination |
1 LUX |
| Lens |
2.8mm IR lens |
| Perspective |
120° |
| Socket |
Standard RS232
socket |
|
|
|
|
3. Handset Phone & LCD |
|
Special Features: |
 |
 |
- When a call comes; the driver can answer it using the handset or LCD.
- Send an SMS to the handset or LCD from your web application.
- The handset or LCD will displays the incoming SMS.
- GPS/GPRS status display.
- Phone call facility with call history lookup.
|
|
Specification: |
| Dot Matrix |
192 x
64 |
| Port |
Standard RS232
port |
| Baud Rate |
19200 |
| Power Supply |
DC 4.5 V ~ 5.5 V |
| Backlight color |
Blue/Yellow |
| Others |
Remote controller
& panel input support |
|
|
|
|

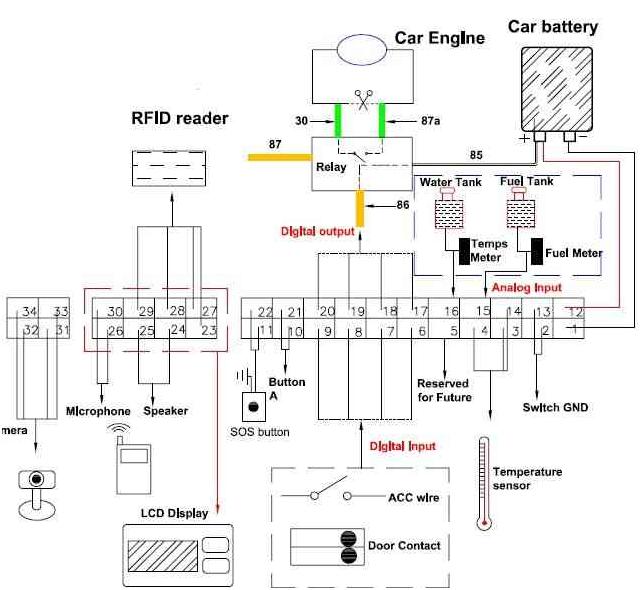

GPS Accessories Ports Graphics: |
 |
|
|
|
|
